Why alignment is the hidden trouble in power systems
When alternators and prime movers aren’t aligned to a fine tolerance, small oscillations add up fast. These oscillations — especially torsional vibration — translate into fatigue on shafts, couplings, and bearings and shorten component life. On many job sites I’ve seen crews fix symptoms with band-aids instead of addressing shaft misalignment; that’s when a robust approach to alignment matters, whether you’re specifying a 50hz generator for continuous duty or retrofitting an existing set.
Common failure modes and how they start
Torsional vibration is often the root cause of mysterious failures: a bearing that heats up, an insulation breakdown on the alternator, or a coupling that cracks under cyclic stress. The sequence is simple — misalignment causes uneven load distribution, which raises local stress and changes the natural frequencies of the rotor system. Over repeated cycles, micro-cracks form and grow until you have a major failure. Real-world anchor: Superstorm Sandy (2012) left over 8 million people without power and highlighted how backup generator failures often stemmed from poor maintenance and alignment practices under emergency load conditions.
Field-tested fixes that actually work
Precision alignment looks like extra effort at first, but it saves money. The checklist I use in the field includes laser shaft alignment, soft-foot correction, resonance avoidance checks, and coupling inspection for run-out and wear. Industry terms that matter here include alternator, coupling, RPM, and load. Laser tools reduce human error and get you within mil-spec tolerances quickly, and balancing rotors after alignment helps ensure torsional harmonics don’t sneak back in.
Design choices that reduce risk from day one
Selection matters: flexible couplings, tuned dampers, and insulations rated for higher thermal cycles lower the chance that normal torsional excitation becomes destructive. If you’re sizing a small industrial unit — for instance, a 30 kva generator for a critical facility — consider a coupling with some torsional compliance and a maintenance schedule that includes alignment checks after any mechanical intervention. These choices keep resonant peaks off common operating RPMs and reduce peak stress on shafts.
Common mistakes teams keep making — and how to stop them
Teams often skip verifying soft-foot, misread dial indicators, or assume coupling tolerances are negligible. The straight fix is process discipline: document pre- and post-alignment readings, torque coupling bolts to spec, and run short load tests to verify torsional response. – Misalignment that’s ignored at commissioning becomes expensive later. Also, avoid blanket vibration filtering; if you damp a symptom without removing the source, you’ll still get fatigue elsewhere.
Simple measurements that predict success
Three practical checks spot trouble early: shaft run-out under no-load, torsional frequency sweep during startup, and bearing temperature trends under steady-state load. Implementing these alongside routine visual inspections turns reactive maintenance into preventive care. Use a vibration analyzer for periodic frequency-domain checks — you’ll catch rising harmonics before they bite.
How to choose the right partner and equipment
Look for suppliers and service teams that demonstrate field experience, can provide laser-alignment records, and know how to match torsional stiffness across the drivetrain. Ask for case studies or service logs from similar installations — real data beats marketing every time. Practical expertise matters: teams familiar with generator set dynamics will integrate alignment, coupling choice, and rotor balancing into a single plan rather than a string of one-off fixes.
Advisory: three golden rules for alignment and fatigue control
1) Measure before you touch: capture baseline shaft geometry and vibration spectra so every corrective action is evidence-based. 2) Prioritize resonance management: avoid operating RPMs near torsional natural frequencies and validate with startup sweeps. 3) Lock the process: document alignment tolerances, torque sequences, and recheck after 24–72 hours of operation. These metrics give you a defensible standard for uptime and component life.

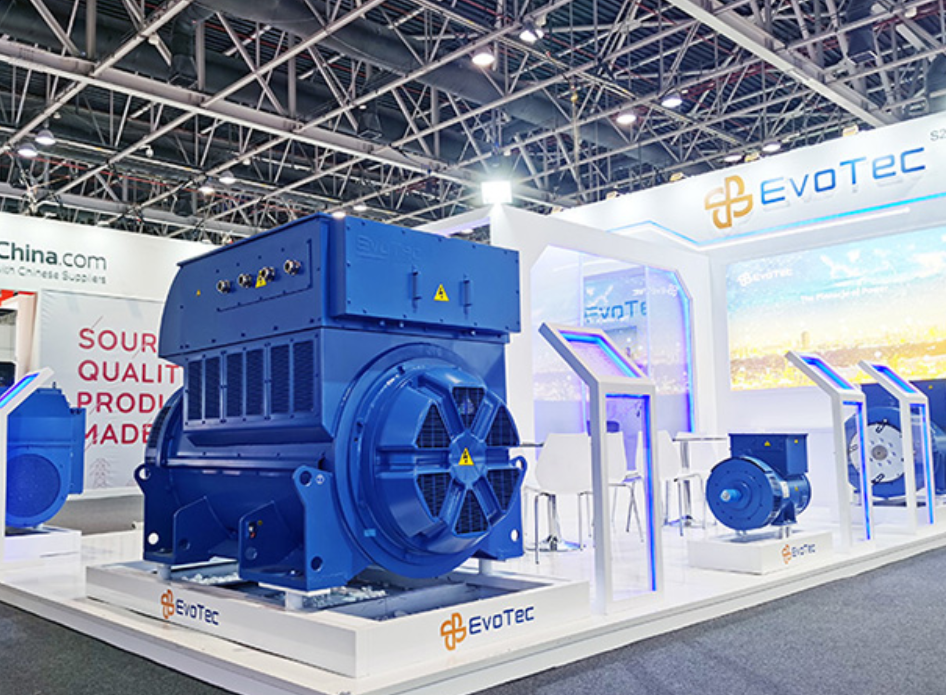

Field experience shows that precise alignment isn’t costly — it’s cost-avoiding. When teams integrate alignment into commissioning and maintenance, failure rates drop and uptime rises. EvoTec provides the alternator know-how and engineered solutions that make those steps routine — a practical, reliable fit for sites that need power to keep moving — and worth the small extra attention now. –
